VENTILATION FAN

Ventilation Fan

Overview

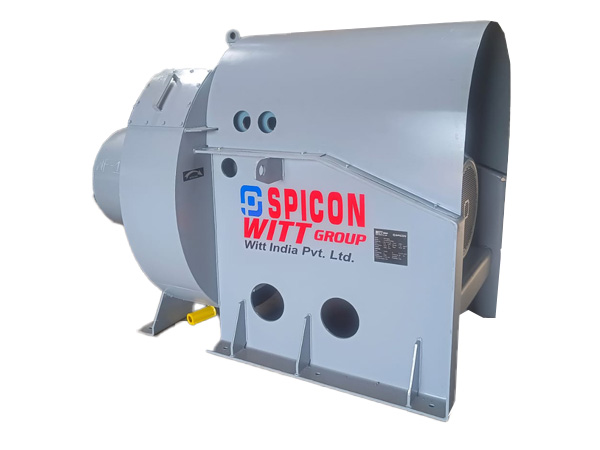

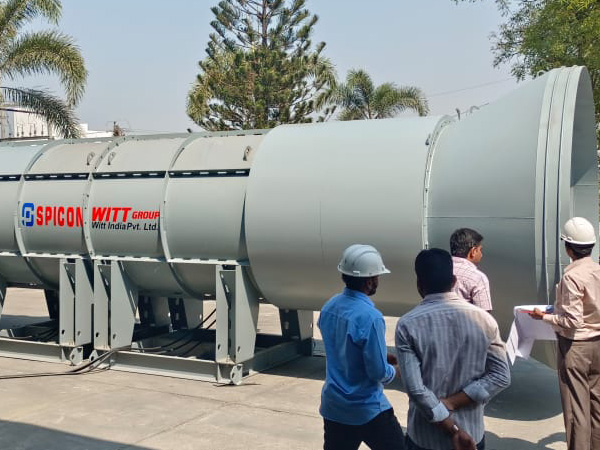

SPICON collaboration with WITT INDIA PVT. LTD, involved in supply & service of complete range of Axial Flow Fans, Centrifugal Fans and Jet Fans, serving tunnelling industries in India and neighbouring countries.

These Ventilation Fans are high-efficiency and deliver powerful ventilation for tunnelling, mining, and heavy industrial environments.

Applications

Tunnel ventilation
Metro rail projects
Underground mines
Industrial plants

Key Features:

High-Pressure Airflow: Designed to deliver optimal static pressure and high-volume airflow.
Robust Construction: Heavy-duty galvanized steel housing with corrosion resistance for underground use.
Energy Efficient Motors: Fitted with IE2/IE3 grade motors to reduce energy consumption.
Variable Speed Drive (VSD) Compatible: Allows flexible speed control to meet ventilation demand.
Low Noise Operation: Designed with noise-reducing components and silencers.
Modular & Stackable Design: Fans can be installed in series or parallel for higher pressure or volume.
Easy Maintenance: Access doors, quick-remove impellers, and replaceable components.

Downloads

Product Catalogue

Technical Specifications:

Parameter	Specification
Model	Spicon VF Series
Type	Axial Flow Ventilation Fan
Diameter Range	400 mm – 1600 mm
Airflow Capacity	6,000 m³/h – 120,000 m³/h
Static Pressure Range	Up to 3,500 Pa
Motor Power	5.5 kW – 110 kW
Motor Type	TEFC (Totally Enclosed Fan Cooled), IE2/IE3 Rated
Voltage	415V ±10%, 3 Phase, 50 Hz
Speed	960 – 2900 RPM (VFD compatible)
Material	Galvanized/Coated Carbon Steel or Aluminium Alloy
Blade Type	Aerofoil / Adjustable Pitch Impellers
Noise Level	< 85 dB at 1 meter (with silencer)
Mounting Options	Base Mounted / Skid Mounted / Hanging Frame
Application	Tunnel / Underground / Mining Ventilation
Optional Add-ons	Silencer, Inlet Cone, Diffuser, Dampers, Control Panel

Applications:

Tunnel and Metro Rail Construction
Underground Mining Operations
Hydro-Electric Tunnels
Oil & Gas Cavern Ventilation
Large Infrastructure Projects

Why Choose Spicon Ventilation Fans?

High-Performance Efficiency: Engineered for maximum air delivery with minimal power usage.
Durable and Reliable: Withstands harsh environmental and operational conditions.
Flexible Integration: Supports all standard ducting and fan control systems.
On-Site Support: Backed by Spicon’s service team for quick installation and repair.
