Overview

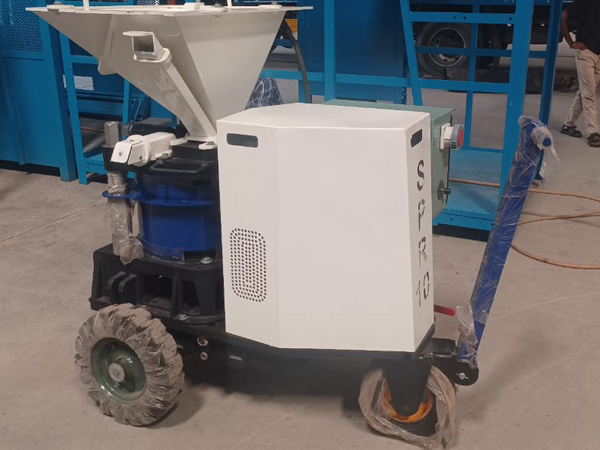

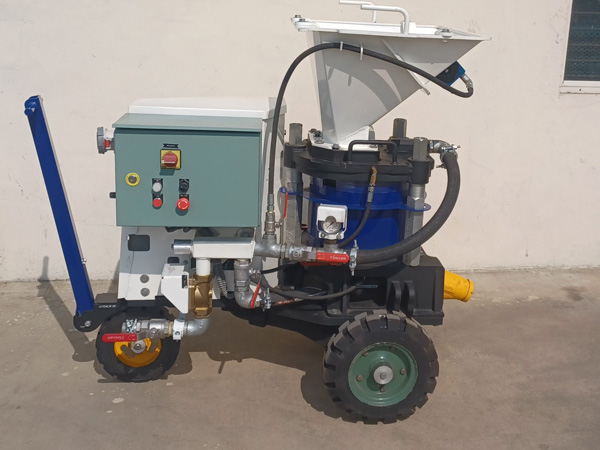

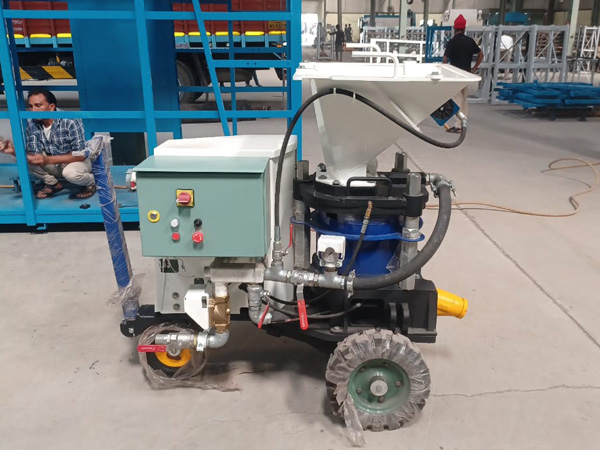

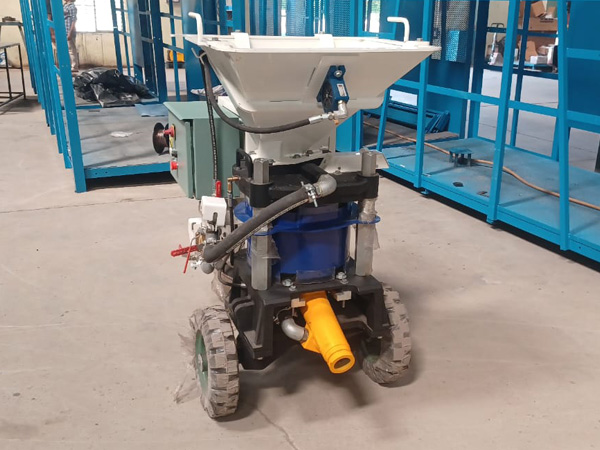

SPICON Rotary Shotcrete Spraying Machine, SPR-10 is a compact and versatile rotary shotcrete machine suitable for small to medium concrete spraying volumes. Its rugged design supports both dry and wet spraying with low wear and reduced downtime.
Applications
- Tunnel & mining support works
- Slope protection work
- Rock consolidation
Key Features:
- High-performance rotary rotor system for smooth and consistent concrete flow
- Adjustable output speed for various application needs
- Suitable for wet or dry shotcrete processes
- Compact design with high mobility and ease of transport
- Reinforced structure for long service life and heavy-duty operations
- Low maintenance requirements with wear-resistant components
- User-friendly controls for ease of operation.
Downloads
Technical Specifications:
|
Parameter |
Specification |
|
Type |
Rotary shotcrete
spraying machine |
|
Drive System |
Electric or
Pneumatic (optional) |
|
Rotor Capacity |
7–10 liters |
|
Output Capacity |
4–6 m³/hour |
|
Working Pressure |
6–7 bar |
|
Max Aggregate Size |
Up to 16 mm |
|
Hose Diameter |
38/50 mm |
|
Power Requirement |
5.5 kW
(electric motor) |
|
Weight |
Approx. 450–600 kg |
|
Mobility |
Skid-mounted or
trolley-mounted |
Applications:
- Tunnel lining and underground works
- Mining and shaft stabilization
- Slope protection and retaining walls
- Dam and canal rehabilitation
- Swimming pool and architectural shotcrete works
Why Choose Spicon SPR10?
- High efficiency with reduced rebound loss
- Versatile design for dry and wet shotcreting
- Easy handling and transport on-site
- Built to perform in rugged environments
- Excellent service support and spare availability
